SIRIO PLATE AD60-CCTAD

Codice: GM-SIRI-60W-PLT-TADTP3-AD

Key features: With kerafyrm diffuser plate and remote controller for adjust power and CCT

Dati Tecnici

  • Power: 60W/40W/30W
  • CCT: 2200K/3000K/4000K
  • Lumen: 9600
  • CRI: >70
  • SDCM: ≤5
  • Driver: Sosen
  • Premium branded LED
  • Dimmerable: NO
  • Voltage - Frequency: 100-277V - 50/60Hz
  • Surge protection: 6kV Differential Mode, 6kV Common Mode (optional: 10kV/20kV Surge Protection Device)
  • Power factor: >0.95
  • Degree of protection: IP66
  • Impact protection: IK08
  • Thermal conductivity: 96 W/m*K
  • Operating temperature: -40°C - +45°C
  • TM21: L70B10>102000hr

Descrizione

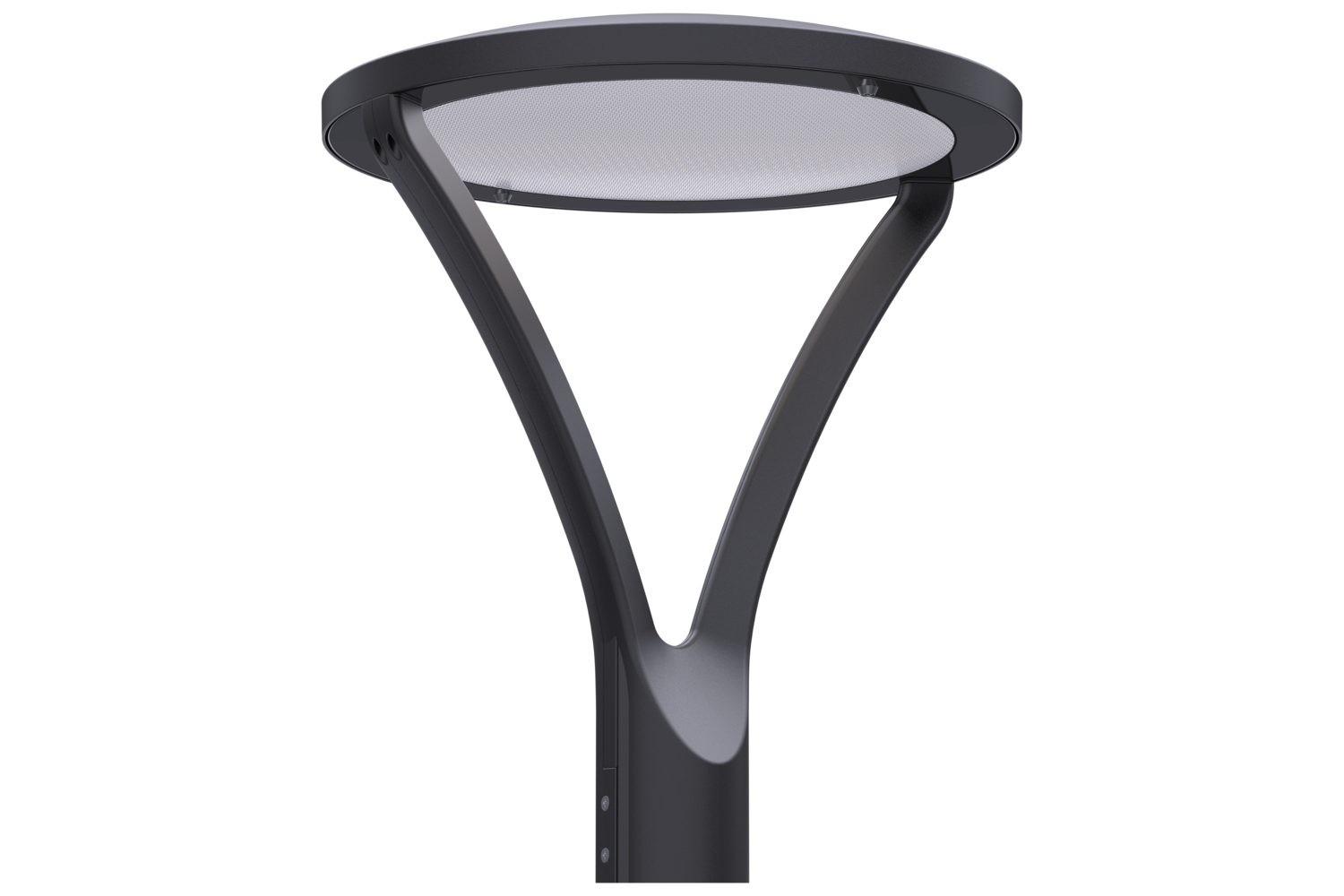

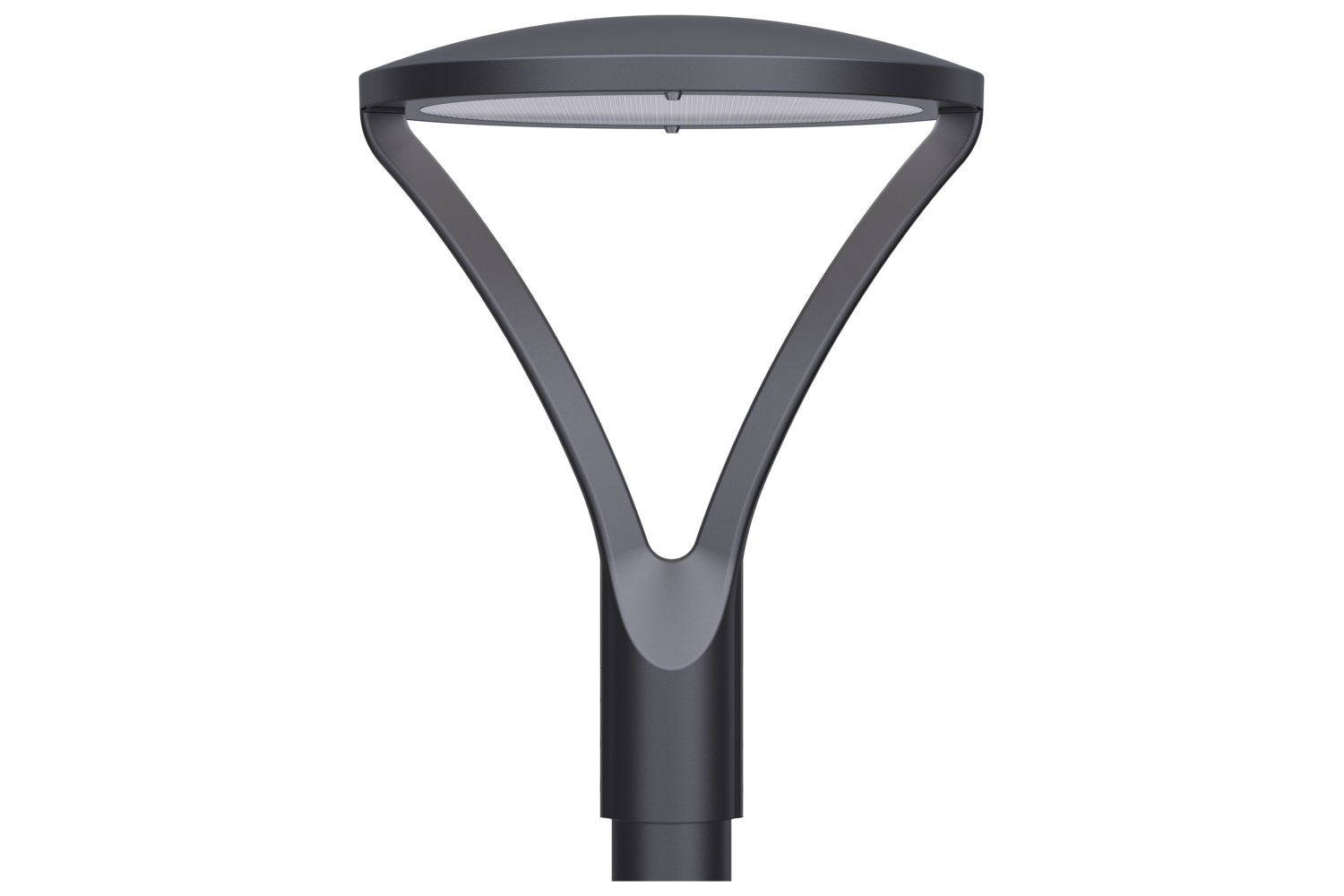

SIRIO PLATE AD60-CCTAD è un lampione testa-palo LED (60 W), con temperatura colore regolabile. È pensato per parchi, vialetti, aree verdi, cortili e spazi pedonali. Può essere installato in giardini pubblici, aree residenziali, percorsi esterni e zone di sosta per creare una luce diffusa, ordinata e confortevole.

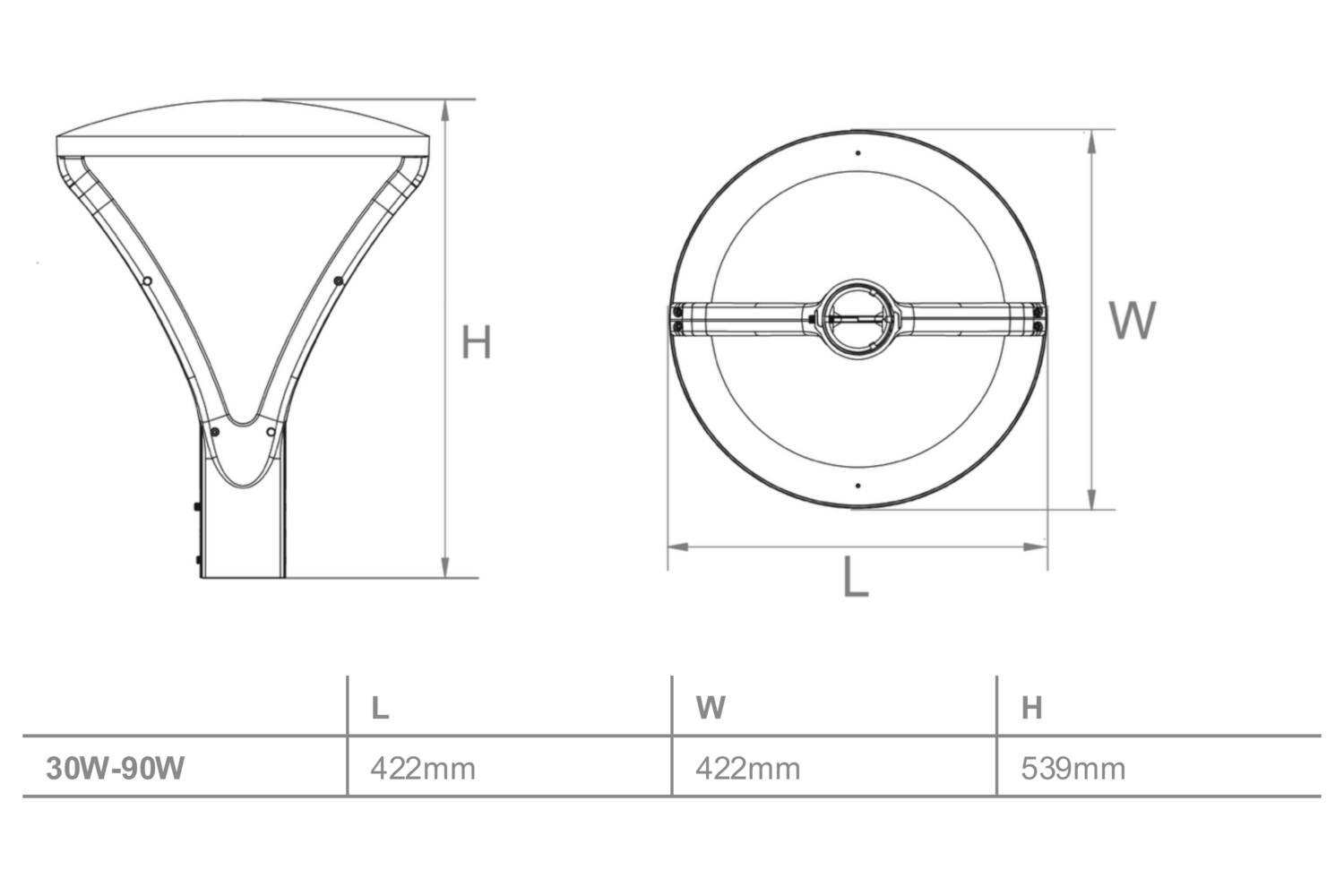

Disegno tecnico

Misure del prodotto

Optical option: Type3

Optical option: Type3

Pole mounted

Pole mounted

2 to 4 years warranty

2 to 4 years warranty

With remote controller

With remote controller

Equipped with Sosen driver

Equipped with Sosen driver

Photobiological Risk: RG0/1

Photobiological Risk: RG0/1

Documentazione
